アプリ概要

学校のチャイムを指定時刻に鳴らすことができるシンプルなスケジュールアラームです。ノーチャイム運動が盛んな中,あえてチャイムを鳴らしたい方や長期休業(夏休みなど)中の児童・生徒に休み中も規則正しく生活させたい,自らが規則正しく生活したいと考えられる方に最適です。

サウンドは一般的な学校チャイム(ウエストミンスターチャイム,音色1〜3の出典はMusic is VFR,音色4は英国国会),サイレン,寺の鐘,ファイアベル,呼び鈴などから選択できます。スケジュールはデフォルトで大学5時限,サンプルとして小学校6時限,中学校5時限,高等学校6時限,大学7時限,会社(始業,昼休み開始,昼休み終了,終業)を用意しています。これを修正して利用したり,新規にスケジュールを設定することも可能です。通知機能によりバックグラウンドでもチャイムが鳴りますので起動したままである必要はありません。チャイムは1日最大64回まで設定可能です。

防災無線でよく使用される「赤とんぼ」などの収録案がありましたが,著作権が有効で自由に使えないため断念しています。またiOS 9上ではOSそのもののバグ(iOS 9.0.2では未解決でしたが,9.1では解決したように見受けられます)により通知音が鳴らない場合がありますのでご了承ください。ちなみに,本アプリは開発者が高校野球観戦時に正午(および試合開始・終了)のサイレンを聞き,事務所でも同様のチャイムを鳴らそうと開発したプロトタイプがベースになっています。

ウエストミンスターチャイムの旋律についてご意見をいただくことがあります。国内で使用されている学校チャイムの起源は諸説ありますが,ロンドンのウエストミンスター宮殿(英国国会議事堂)にある時計塔ビッグ・ベンの旋律がオリジナルであるとされています。さらにビッグベンはグレート・セント・メアリー教会の鐘の旋律を元にしています。本アプリの音色4がビッグベンの公式で,国内で使用されている学校チャイムのオリジナルの旋律にあたりますのでご確認ください。

アプリやOSのアップデート実施環境により,当社アプリに限らずバックグラウンドで通知音が鳴らなくなる場合があります。一度アプリを起動してチャイムテストで音量を確認する。だめな場合は「設定>通知>学校チャイム」の通知をオフ/オンと切り替える。これでもだめな場合はアプリを再インストールする,の順で実施してください。手っ取り早いのはアプリの再インストールです。他のアプリの通知もない場合は本体を再起動してください。

画面の説明画面の説明

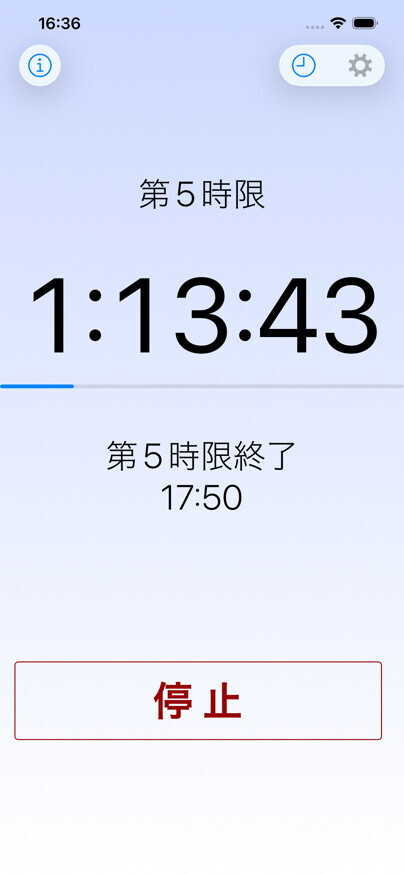

(メイン画面)

アプリ情報(iボタン)

お問い合わせの多い操作方法や問題の解決方法についてまとめてあります。

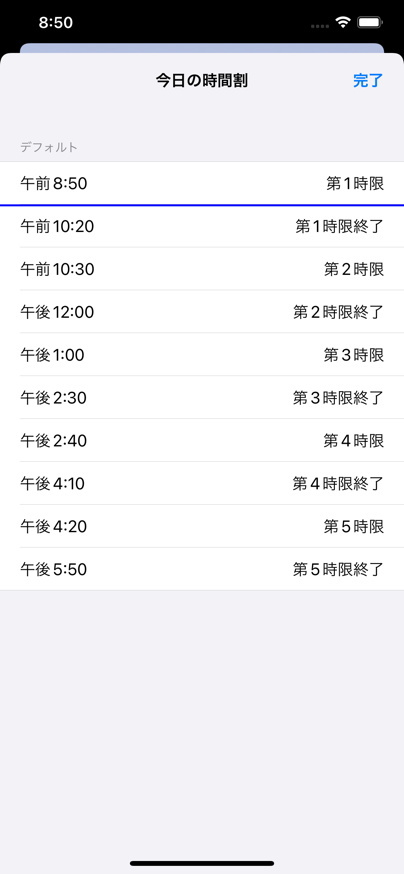

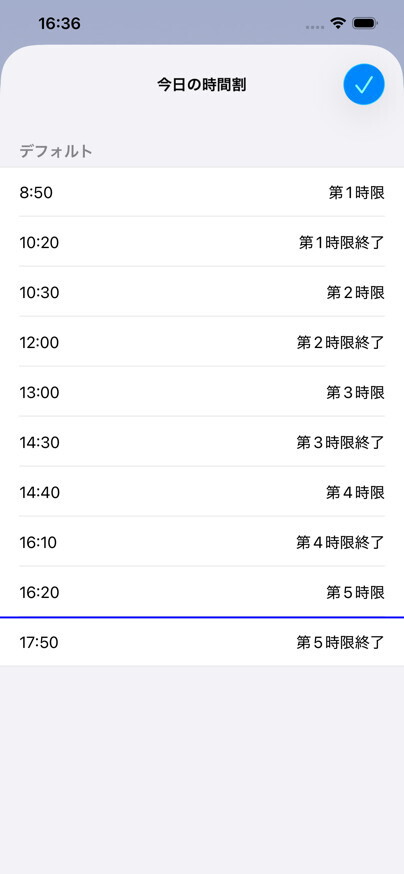

時間割の確認(時計アイコン)

チャイムの時刻一覧を表示します。

設定(歯車ボタン)

設定画面を表示します。

(設定画面)

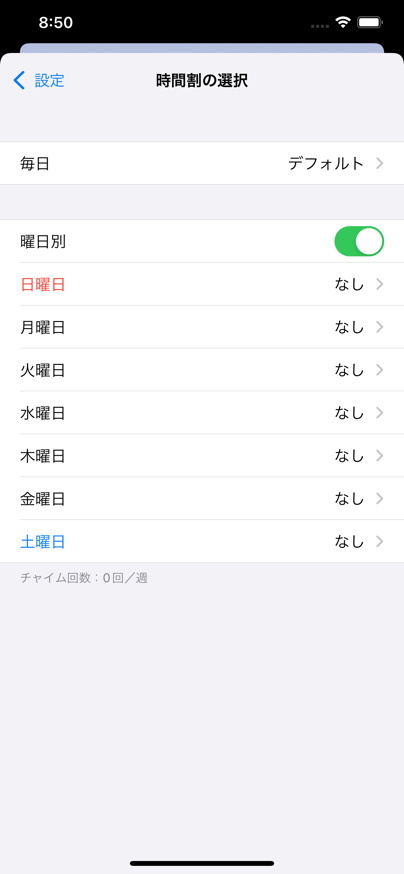

時間割の選択

使用する時間割を選択します。

時間割の編集

時間割の新規追加や既存項目の修正を行います。

共通のチャイム

チャイムの種類(音色)を設定します。イベント別に設定することも可能です。

通知の表示

オフにすると通知が音声のみになります。iOS14以下でのみ表示されます。

消音モードでチャイムを鳴らす

フォアグランドの時のみ消音モードでもチャイムを鳴らすことができます。

チャイムテスト

スケジュールに関係なくチャイムを鳴らします。

URLスキーム

1. オン・オフ

(書式)sc://a/b/c

a

on または off,offを指定した場合,下位項目は無効になります

b(オプション)

スケジュール番号,リスト表示時の最上位(デフォルト)を0とする連番です

c(オプション)

音色番号,リスト表示時の最上位(チャイム1)を0とする連番です。

入力例

sc://on/0/1

sc://on

sc://off



2. スケジュールの追加

(書式)sc://add/a/hhmmb/...

add

定数,追加時はaddとしてください

a

スケジュール名

hhmm

24時間制での時刻(時分)

b

チャイム時刻の説明

入力例

sc://add/テスト/0800開始/1200正午/1700終了

※半角の空白やカンマが入るとアプリをうまく呼び出せない場合があります。その場合,空白は%20,カンマは%2cに置き換えてみてください。

時間割設定方法

設定画面(図1)の「時間割の編集」をタップすると時間割の編集ができます。時間割の編集画面(図2)には画面下にツールバーがあり,時間割の追加と複製が可能です。ここでは,「サンプル会社」の名称変更とチャイム時刻の変更を例に操作方法を示します。

図1 設定画面

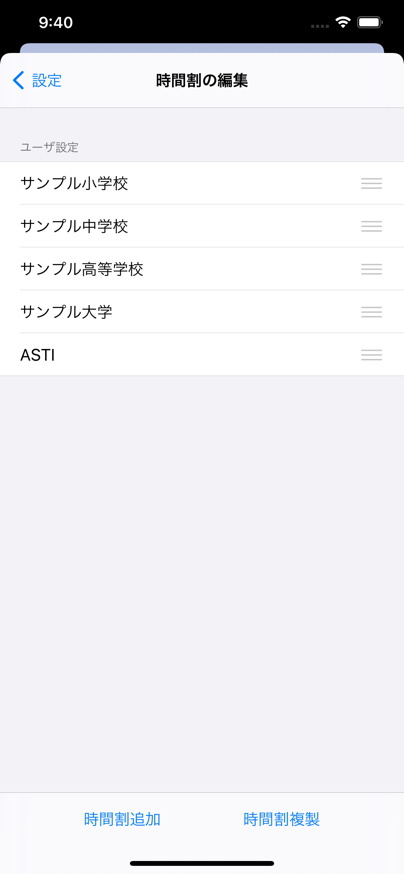

図2 時間割編集画面

時間割名やチャイム時刻(イベント)は時間割「デフォルト」を除いて自由に設定することができます。時間割を追加したい場合は時間割追加をタップし,時間割名入力画面(図3)で新しい時間割名を入力すると空の時間割が作成されます。ここでは「サンプル会社」をタップして時間割詳細画面(図4)を表示します。

図3 新規時間割名入力画面

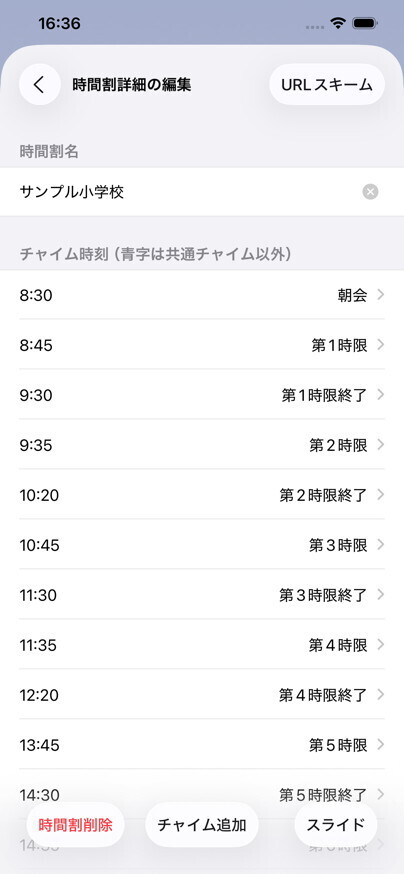

図4 時間割詳細画面

時間割名を変更するには時間割名をタップして時間割名を修正してください。チャイム時刻を追加したい場合は画面下の「チャイム追加」をタップ,チャイム時刻変更したい場合は変更したいチャイム名をタップしてください。チャイムの追加・編集画面(図5)が表示されます。ここでチャイムの説明(イベント名)と時刻の編集,音色の個別指定が行えます。時間割名を「ASTI」,始業時刻を「8:30」に修正して最初の時間割の編集画面(図6)に戻ると編集完了です。最後に必ず保存ボタン(図1)をタップしてください。スワイプで画面を閉じるとキャンセル扱いになります。

図5 チャイムの編集画面

図6 編集完了

バージョン履歴

v2.1.6 2024年3月11日

現在時刻表示機能の追加

v2.1.5 2023年10月10日

iOS17のサポート

v2.1.4 2022年10月25日

iOS16のサポート

スプリットビューのサポート

v2.1.3 2021年10月30日

設定画面の挙動の修正

v2.1.2 2021年10月5日

文字サイズの調整

v2.1.1 2021年10月1日

iOS15のサポート

v2.1 2021年9月7日

時間割り編集機能の改善

v2.0.13 2021年6月29日

スワイプ時のバグの修正

v2.0.12 2021年5月20日

画像ファイルの最適化(アプリサイズの低減)

v2.0.11 2021年4月28日

ユーザインターフェイスの微調整

v2.0.10 2021年4月27日

iOS9〜11をサポートする最後のバージョン

v2.0.9 2021年3月25日

バグの修正(アイコンの表示)

v2.0.8 2021年3月17日

ユーザインターフェイスの細部修正

v2.0.7 2020年12月18日

時間割詳細画面のロケールの修正

v2.0.6 2020年12月17日

タイムゾーンの変更に対応

v2.0.5 2020年12月12日

アクセシビリティラベルの修正

v2.0.4 2020月12月6日

無音チャイムの復活

v2.0.3 2020年12月6日

URLスキームから起動時のバグ修正

v2.0.2 2020年12月4日

チャイム関連バグの修正

v2.0.1 2020年12月1日

プログレスバーのバグの修正

v2.0 2020年12月1日

iOS14のサポート

ユーザインターフェイスの改善

広告削除機能の追加

v1.3.8 2020年5月12日

バグの修正(iOS9との互換,ほか)

v1.3.7 2020年5月3日

ユーザインターフェイスの改善

v1.3.6 2019年10月3日

ダークモードの色修正

v1.3.5 2019年9月27日

iOS 13のサポート

ダークモードのサポート

v1.3.4 2018年7月31日

特定の環境で発生するバグの修正

v1.3.3 2018年5月29日

ユーザインターフェイスの細部修正

音色の追加

v1.3.2 2018年3月15日

iPad上でチャイムまたはスケジュール追加時に発生するバグの修正

音色の追加

v1.3.1 2017年12月9日

スケジュールの行移動時に発生するバグの修正

v1.3 2017年11月29日

iOS 11のサポート

iPhone Xのサポート

iPadのサポート

音色の追加

v1.2 2017年3月17日

iOS 10のサポート

URLスキーム対応

音色の追加

通知の表示スイッチの追加

v1.1.3 2016年4月21日

バグの修正

フォントの変更(iOS 9以降)

音色の追加

v1.1.2 2016年1月28日

スケジュール名が変更できないバグを修正

ボタンのユーザインターフェイスを改良

v1.1.1 2015年12月8日

日本語の12時間制度使用時に起動できないバグの修正

v1.1 2015年10月6日

iOS 9のサポート

スケジュール複製機能の追加

v1.0.1 2015年8月26日

バグの修正(回転の禁止)

v1.0 2015年8月7日

新規リリース


Outline

This app is a basic alarm with scheduling capabilities. If you wish to use a school chime inspired by the Westminster Quarters, this app can fulfill your request. In Japan, the school chime is commonly used to signal the beginning and end of class periods.

Description of Each Screen

(Main Screen)

Information (i button)

This section provides information about the app.

Chime List

Displays a list of times when the chime sounds.

Settings

Opens the settings screen.

(Settings)

Select Schedule

Choose a schedule.

Modify Schedule

Create a new schedule or modify an existing one.

Common Chime

Select a common chime tone.

Display Notifications

If turned off, notifications will be audio-only. (This is applicable to iOS 14 and below.)

Play Sounds in Silent Mode

Allows chimes to sound even in silent mode.

Chime Test

Sounds the selected common chime for testing.

URL Schemes

1. ON/OFF

(Format) sc://a/b/c

a

on or off. If set to off, the following items (b, c) are invalid.

b (optional)

schedule number, with the top of the list (Default) being 0.

c (optional)

tone number, with the top of the list (Westminster 1) being 0.

Examples:

Start with Default and Westminster 2: sc://on/0/1

Stop: sc://off



2. Add a schedule

(Format) sc://add/a/hhmmb/...

add

constant

a

schedule name

hhmm

time in 24-hour format

b

description

Example

Add a “Test” schedule: sc://add/Test/0800Start/1200Noon/1700End

*If your iPhone doesn't read the URL scheme correctly, try converting spaces to %20 and commas to %2c.

How to set a schedule

You can edit schedules by tapping “Modify Schedule” on the Settings screen (Fig. 1). The Modify Schedule screen (Fig. 2) features a toolbar at the bottom where you can add and duplicate schedules. In this explanation, we will use an example to demonstrate the process of changing the schedule name from “Sample Company” and adjusting the chime time.

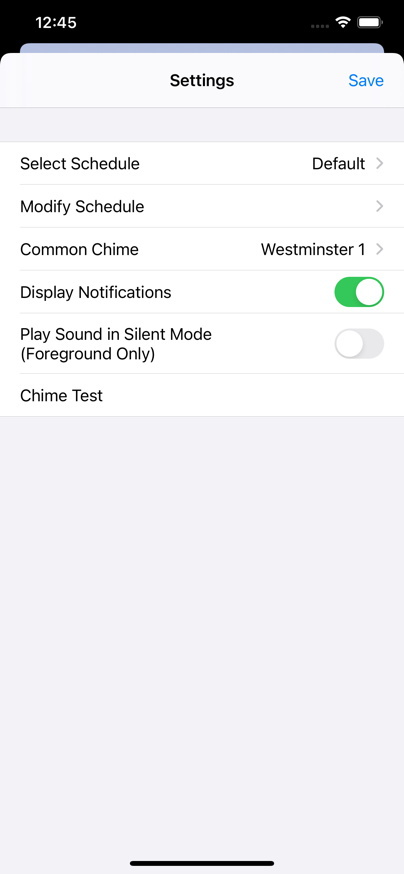

Fig. 1 - Settings screen

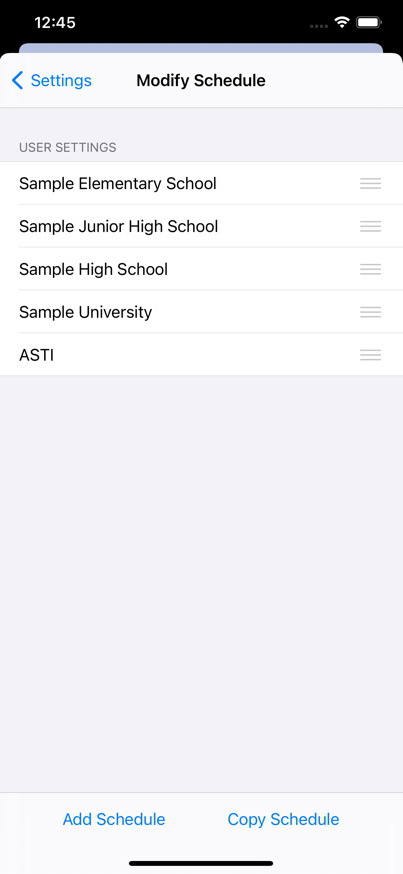

Fig. 2 - Modify Schedule screen

The schedule name and chime time (event) can be customized as desired, except for the “default.” To add a new schedule, tap “Add Schedule” and input a new name on the name input screen (Fig. 3) to create an empty schedule. This time, tap “Sample Company” to open the Modify Schedule Details screen (Fig. 4).

Fig. 3 - Input Name screen

Fig. 4 - Modify Schedule Details screen

To change the schedule name, tap the schedule name and make the necessary modifications. To add a chime time, tap “Add Chime” at the bottom of the screen. If you want to change a chime time, tap the chime name you wish to modify. This will open the “Add Chime” or “Edit Chime” screen (Fig. 5). Here, you can edit the chime description (event name), time, and select individual tones. After renaming the schedule to “ASTI” and setting the start time to “8:30,” return to the initial Modify Schedule screen (Fig. 6) to complete your edits. Don't forget to tap the “Save” button (Fig. 1).

Fig. 5 - Edit Chime screen

Fig. 6 - Completed

Version History

v2.1.6 Mar. 11, 2024

Added current time display function.

v2.1.5 Oct. 10, 2023

Supported iOS 17.

v2.1.4 Oct. 25, 2022

Supported iOS 16.

Supported Split View.

v2.1.3 Oct. 30, 2021

Fixed bugs.

v2.1.2 Oct. 5, 2021

Fixed font size.

v2.1.1 Oct. 1, 2021

Supported iOS 15.

v2.1 Sep. 7, 2021

Improved timetable editing functions.

v2.0.13 June 29, 2021

Fixed a bug.

v2.0.12 May 20, 2021

Optimized image files.

v2.0.11 Apr. 28, 2021

Fixed bugs.

v2.0.10 Apr. 27, 2021

The final version to support iOS 9–11.

v2.0.9 Mar. 25, 2021

Fixed bugs.

v2.0.8 Mar. 17, 2021

Improved user interface.

v2.0.7 Dec. 18, 2020

Fixed a bug.

v2.0.6 Dec. 17, 2020

Supported changing the time zone.

v2.0.5 Dec. 12, 2020

Fixed accessibility labels.

v2.0.4 Dec. 6, 2020

Revived the silent chime.

v2.0.3 Dec. 6, 2020

Fixed a bug.

v2.0.2 Dec. 4, 2020

Fixed chime related bugs.

v2.0.1 Dec. 1, 2020

Fixed bugs.

v2.0 Dec. 1, 2020

Supported iOS 14.

Improved user interface.

Added a function to remove ads.

v1.3.8 May 12, 2020

Fixed bugs.

v1.3.7 May 3, 2020

Improved user interfaces.

v1.3.6 Oct. 3, 2019

Adjusted Dark Mode color.

v1.3.5 Sept. 27, 2019

Supported iOS 13.

Supported Dark Mode.

v1.3.4 July 31, 2018

Fixed a bug that the start button overlaps the table in a specific device environment.

v1.3.3 May 29, 2018

Fixed user interfaces.

Added a new tone.

v1.3.2 Mar. 15, 2018

Fixed a bug which occurs when to add a chime and a schedule on iPad.

Added new tones.

v1.3.1 Dec. 9, 2017

Fixed bugs which occur when move rows.

v1.3 Nov. 29, 2017

Support for iOS 11.

Support for iPhone X.

Support for iPad.

Added new chime tones.

v1.2 Mar. 17, 2017

Supported iOS 10.

Supported URL schemes.

Added new chime tones.

Added Display Notifications switch.

v1.1.3 Apr. 21, 2016

Fixed bugs.

Improved the UI.

Added new chimes.

v1.1.2 Jan. 28, 2016

Fixed a bug which cannot change a schedule name.

Changed the button UI.

v1.1.1 Dec. 8, 2015

Fixed a bug which occurs when you use 12-hour time in Japanese.

v1.1 Oct. 6, 2015

Supported iOS 9.

Added a function which copies a schedule.

v1.0.1 Aug. 26, 2015

Fixed a bug (portrait only).

v1.0 Aug. 7, 2015

New release
